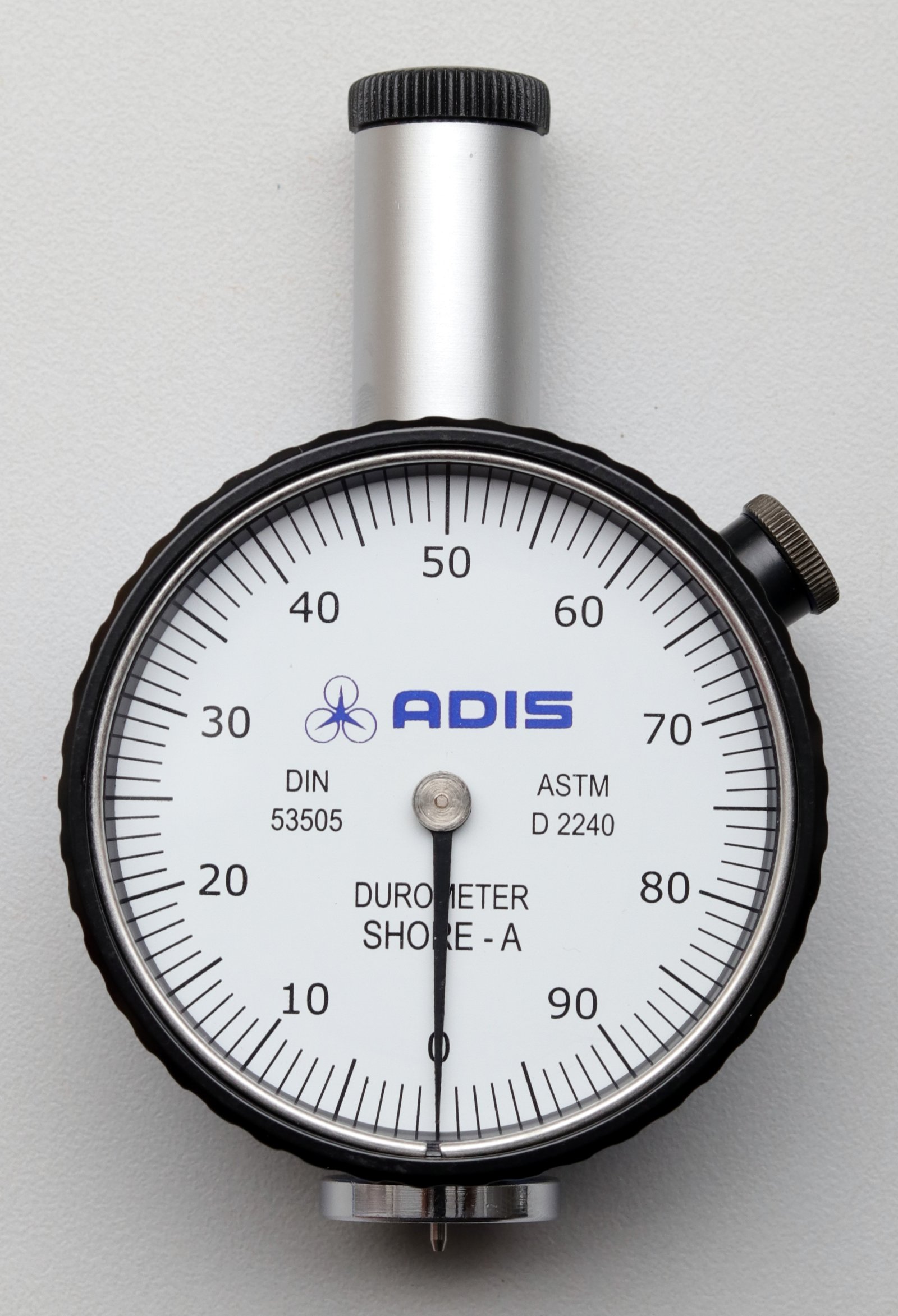

Shore A Basic WPP

DESCRIPTION:

ADIS Durometers Shore A (Basic WPP) Manufacturer in Dahanu, Maharashtra offers high-quality durometers made from a special Zinc alloy, allowing a compact design without compromising durability and strength. The advanced transmission system uses HSS (High-Speed Steel) Rods as the indenter contact point, guided on Linear Ball Bearings instead of Bush Bearings, reducing friction and ensuring smoother transmission with improved measurement sensitivity.

Designed for comfortable handling and reliable performance, ADIS Durometers Shore A (Basic WPP) Supplier in Dahanu, Maharashtra provides an accuracy of ± 2 HA, making it suitable for measuring the hardness of products and components with low tolerance requirements and educational applications. It features a measuring force of 8.06 N, an HSS rod indenter with 60 HRC hardness, and a precision-engineered truncated cone design with a 35° included angle.

As a trusted ADIS Durometers Shore A (Basic WPP) Manufacturer in Dahanu, Maharashtra, this hardness testing instrument is widely used for measuring the hardness of rubber, silicone, PU, PVC, printer rollers, tyres, neoprene, EPDM rubber, polyurethane, white PVC, and similar materials. Manufactured in India, it complies with ASTM D 2240 / DIN 53505 standards and is designed for reliable hardness testing across industrial and educational applications.

ADIS Durometers Shore A (Basic WPP) Supplier in Dahanu, Maharashtra provides instruments designed to fit comfortably and firmly in hand for easy and efficient operation.

Product Features:

• Accuracy of ± 2 HA (used for measuring the hardness of products or components with low tolerance requirements and educational purposes)
• Measuring force of 8.06 N (0.822 kg)
• Indenter (contact point) made of HSS Rod with 60 HRC hardness, precision-ground to a truncated cone shape with an included angle of 35° and close tolerances of ± 0°30”
• Pressure foot diameter: 18 mm (± 0.5 mm)
• Net weight: Approximately 200 grams
• Dimensions (L × W × H): 58 × 33 × 95 mm
• Used for measuring hardness of rubber, silicone, PU, printer rollers, tyres, PVC, polyurethane, and related materials
• Proudly Manufactured in India by ADIS Durometers Shore A (Basic WPP) Manufacturer in Dahanu, Maharashtra

SPECIFICATION:-

Standards	ASTM D 2240 / DIN 53505
Indication range	0 - 100 Div. (360-degree dial scale)
Minimum indication	1 Shore
Accuracy	± 2 Shore
Indenter Design (mm)	Truncated Cone with 35° Included Angle
Spring Forces (N)	8.055 N
Indenter Image
Pressure foot Dimension	Ø 18 mm
Approx. Outer Dimension (mm)	(L×W×H)   60 x 32× 100
Weight (g)	175 g
Application	To measure the hardness of Neoprene, EPDM rubber, polyurethane, printing rollers, silicone, white PVC, and other similar materials.
